Whyte Fast Fit Fibre Connector WFSC-FF-SC/APC (pk 10)

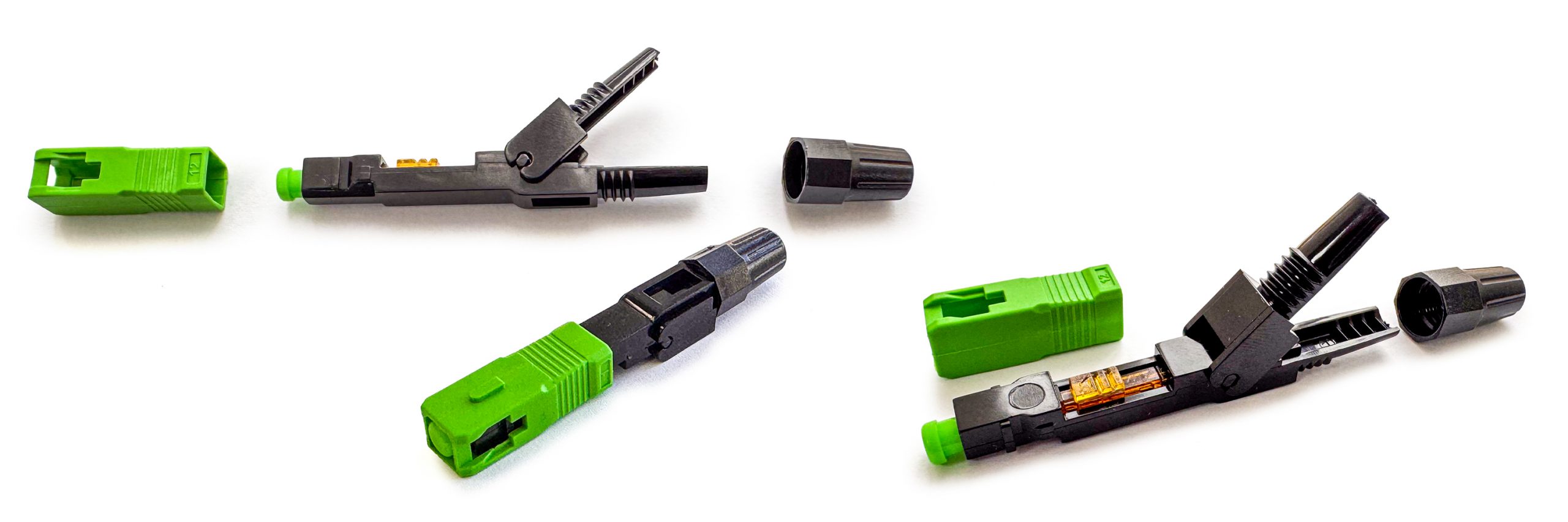

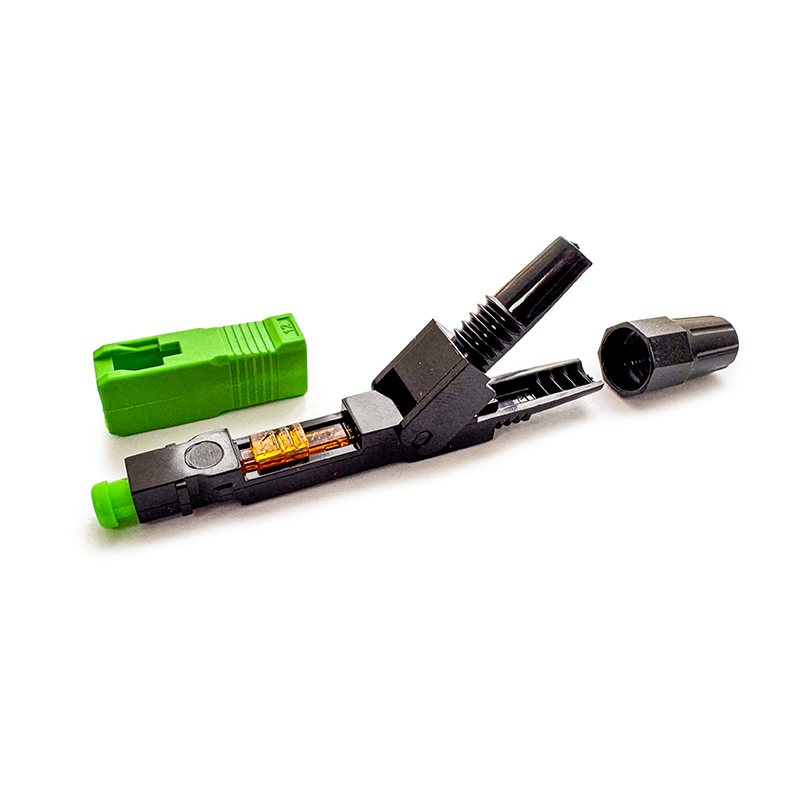

These SC/APC fast connectors are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. Using proven mechanical splice technology. A factory pre-cleaved fibre stub combined with index-matching gel provides an immediate low-loss termination.

Note: If 2.0 mm or 3.0 mm OD connections are required, simply remove the 0.9 mm adaptor from the fast connector.

Specifications

DescriptionSC/APC Fast Fit
Insertion Loss≤0.3dB (MA*0.5dB)
Return Loss≥60dB
Fibre Diameter (mm)2.0, 3.0, 3.5 GJXH
Tension20N
Operating Temp.-40°C ~ 85°C (≤0.5dB)
