Whyte Fibre Optic Distribution Box - WFDB-CAS-64

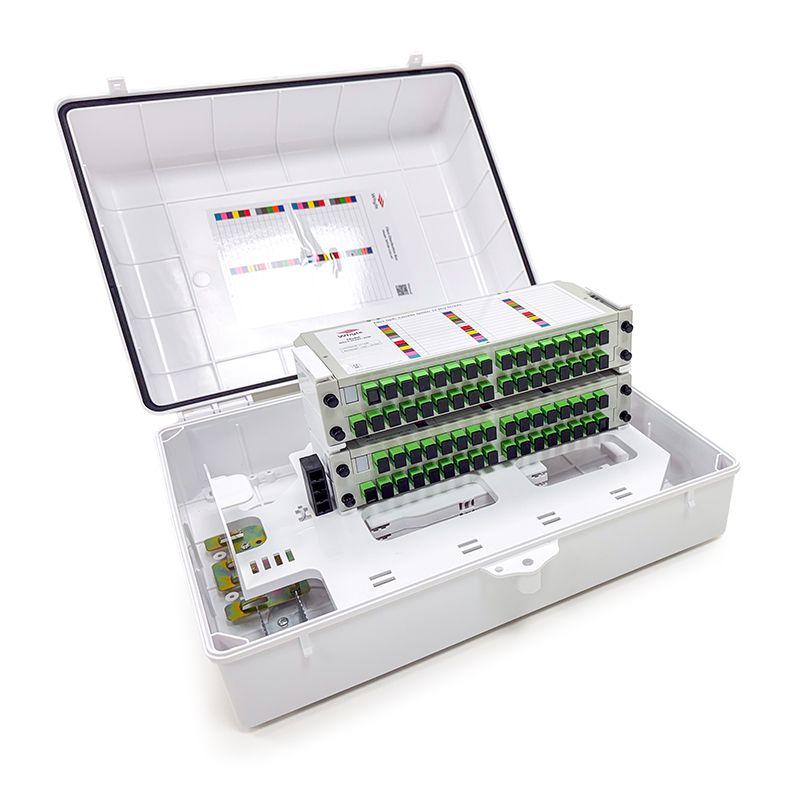

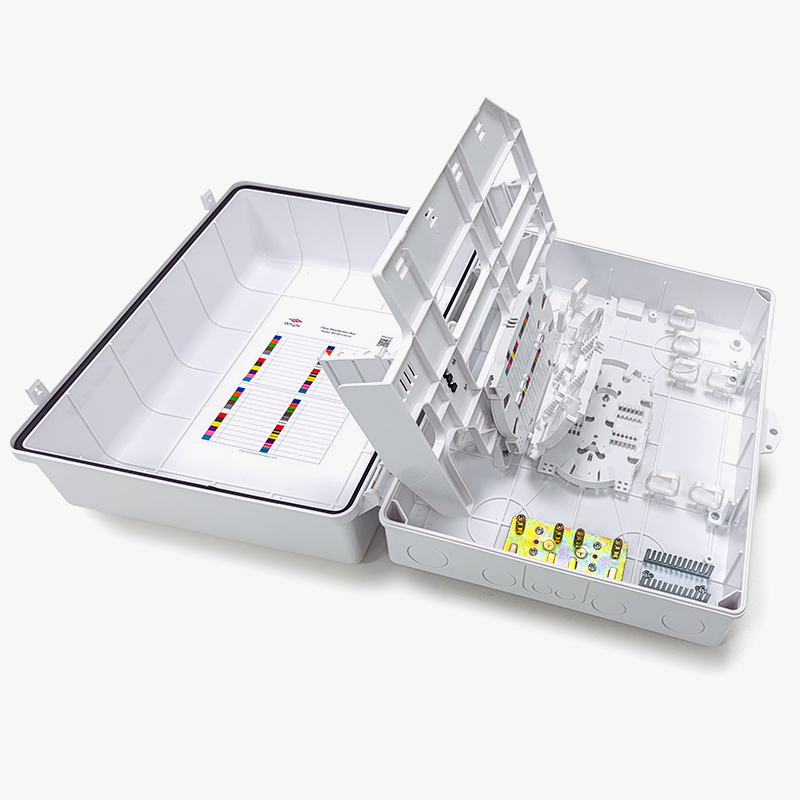

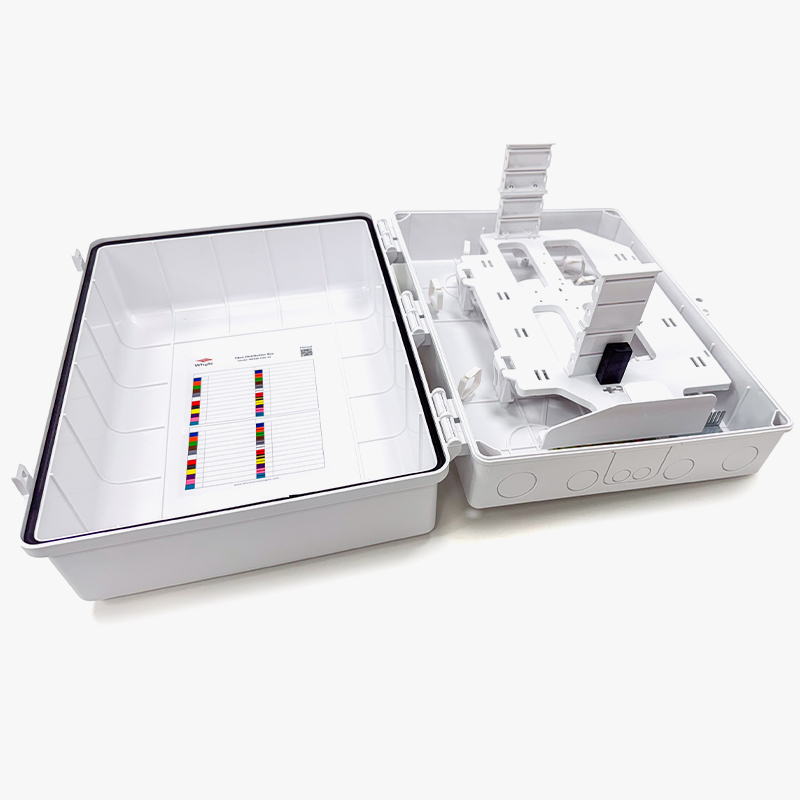

This range of Whyte Fibre Optic Distribution Boxes provides a robust and flexible solution for indoor and outdoor fibre termination. This range of Fibre Distribution Boxes comes with in-built cassette splitter positions, splice trays with a colour-coded labelling system and ample cable access ports. They are designed to be used with either pre-terminated or multicore fibre cables and come with an array of installation accessories and consumables for the ultimate convenience of the end-user.

The 16, 32 and 64-Way Fibre Distribution Boxes also offer the possibility of stacking multiple boxes thanks to top and bottom cable access ports.

*Pole mounting kit available separately.

Specifications

Splice Capacity 72
Cassette Size Options Up to 2x 32 Way Cassette (Horizontal fixing)
Adaptor Bracket Included 64 Way
Mounting Wall / Pole*
Cable Mounting Vertical
Cable Access Ports Top 6
Cable Access Ports Bottom 6
Fibre Identification Label TIA-598 Standard
Splice Protectors 64 x 60mm
Rawl plugs 4
Mounting screws 4
Small cable ties 16
Key 1
Cable Sleeve mm 5 x 600 (6pcs)
Earth Blocks Fitted
M32 Compression Gland 2
M20 Compression Gland 2
M15 Compression Gland 2
Jubilee Clips 2
Colour Signal White RAL9003
Main Material UV Resistant ABS Plastic
IP Rating IP65
Compliance RoHS, Reach / SVHC
Operating Temperature -40 ~ +80ºC
Storage Temperature -40 ~ +80ºC
