Whyte Fibre Optic Distribution Box - WFDB-CAS-32
This range of Whyte Fibre Optic Distribution Boxes provides a robust and flexible solution for indoor and outdoor fibre termination. This range of Fibre Distribution Boxes comes with in-built cassette splitter positions, splice trays with a colour-coded labelling system and ample cable access ports. They are designed to be used with either pre-terminated or multicore fibre cables and come with an array of installation accessories and consumables for the ultimate convenience of the end-user.
The 16, 32 and 64-Way Fibre Distribution Boxes also offer the possibility of stacking multiple boxes thanks to top and bottom cable access ports.
*Pole mounting kit available separately.
- Built to withstand harsh environmental conditions
- Colour coded labelling system for fibre identification
- Complete with installation accessories, ready to fit
- Suitable for multi-core and pre-terminated fibre cables
- Colour coded labelling system TIA-598
- Splice trays with colour coded labelling system
- Cassette splitter mounting points
- Splice tray with fibre raceway
Specifications
| Splice Capacity | 48 |
| Cassette Size Options | Up to 32 |
| Adaptor Bracket Included | 32 Way |
| Mounting | Wall / Pole* |
| Cable Mounting | Vertical |
| Cable Access Ports Top | 6 |
| Cable Access Ports Bottom | 6 |
| Fibre Identification Label | TIA-598 Standard |
| Splice Protectors | 32 x 60mm |
| Rawl plugs | 4 |
| Mounting screws | 4 |
| Small cable ties | 8 |
| Key | 1 |
| Cable Sleeve mm | 5 x 600 (3pcs) |
| Earth Blocks | Fitted |
| M32 Compression Gland | 1 |
| M20 Compression Gland | 1 |
| M15 Compression Gland | 1 |
| Jubilee Clips | 2 |
| Colour | Signal White RAL9003 |
| Main Material | UV Resistant ABS Plastic |
| IP Rating | IP65 |
| Compliance | RoHS, Reach / SVHC |
| Operating Temperature | -40 ~ +80ºC |
| Storage Temperature | -40 ~ +80ºC |
| Net Weight kg | 2.5 |

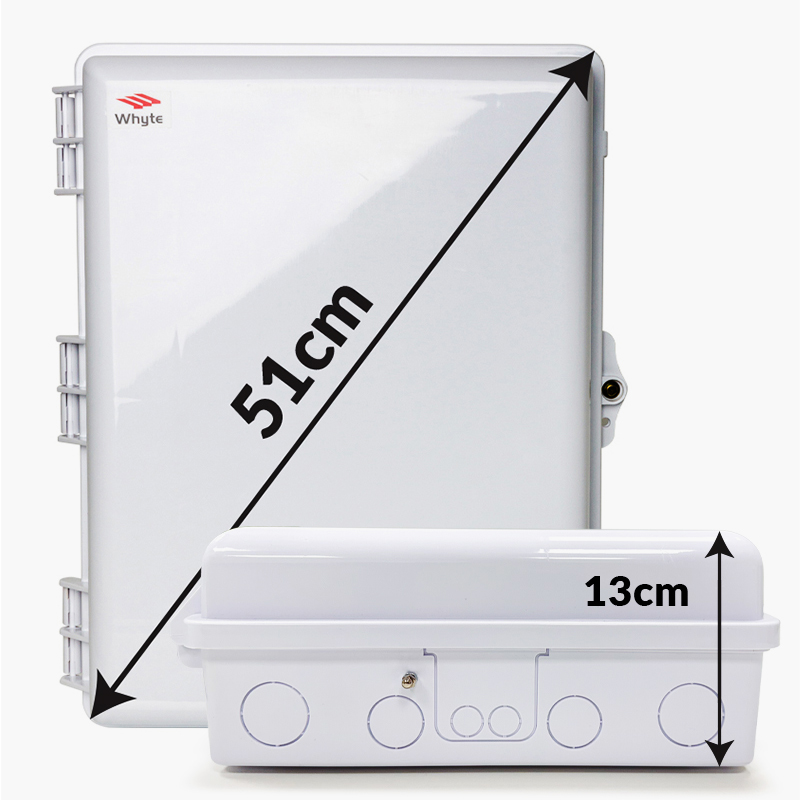

| Dimensions (H x W x D) mm | 420 x 350 x 130 |
